HUMAN MEDITEK CO., LTD.

Innovative Technology for Human Benefits

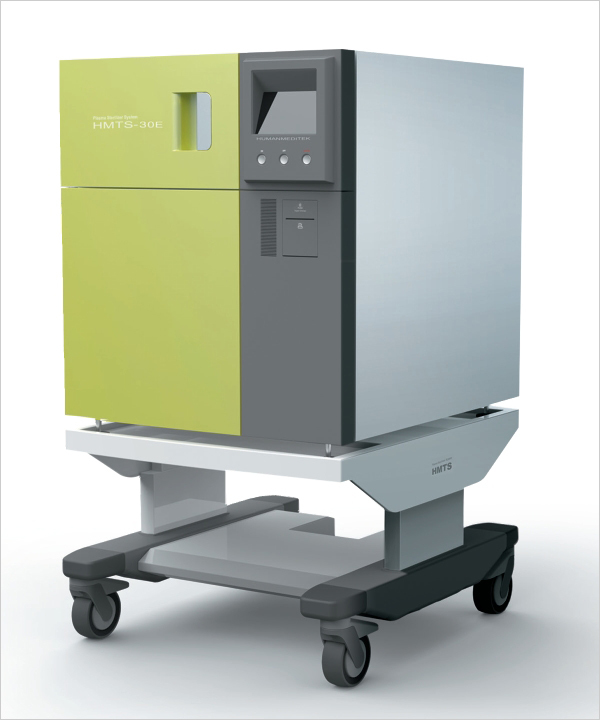

HMTS-30E

HMTS-30E offers speed and versatility in a compact low temperature sterilizer. The rapid 25 minute SURFACE Mode with 30L usable chamber volume is the ideal choice for anywhere in the hospital.


HMTS-30E

Dimensions and Weight

Size
Width 740 mm
Height 825 mm (With Cart) 1350 mm
Depth 725 mm
Weight
160 kg


Sterilization Chamber

Total Volume
34 L (1.2 cubic feet)
Dimensions (W x H x D)
340 mm x 170 mm x 600 mm
Shelf Strength
25 kg
Shelf Dimensions (W x D)
320 mm x 560 mm


STERILIZATION MODE OVERVIEW

SURFACE MODE

25min

STANDARD MODE

27min

ADVANCE MODE

39min

Quick Surface Sterilization Cycle

  • General metal/non-metal devices requiring surface
    sterilization, or sterilization of mated stainless steel or titanium surfaces

  • Non lumen rigid, semi-rigid endoscopes











Conventional Flexible/Rigid Sterilization Cycle with Extra Loads

  • Ten(10) Polyethylene and Teflon lumen instruments with: Internal diameter of 1mm or larger and a length of 500mm or shorter

  • Ten(10) Stainless Steel lumen instruments with: Internal diameter of 1mm or larger and a length of 200mm or shorter








Versatile Flexible/Rigid Sterilization Cycle with Extra Loads

  • Ten(10) Polyethylene and Teflon lumen instruments with: Internal diameter of 1mm or larger and a length of 1,000mm or shorter

  • One(1) Polyethylene and Teflon lumen instruments with: Internal diameter of 1mm or larger and a length of 1,500mm or shorter

  • Ten(10) Stainless Steel lumen instruments with: Internal diameter of 1mm or larger and a length of 500mm or shorter

  • One(1) Single channel flexible endoscopes with: Internal diameter of 1mm or larger and a length of 850mm or shorter without additional loads
One shelf of the chamber can be used in SURFACE mode.
Max. loading weight : 1.89kg (4.1lbs)
Up to two shelves of the chamber may be used in STANDARD mode.
Max. loading weight : 3.72kg (8.2lbs)
Up to two shelves of the chamber may be used in ADVANCED mode.
Max. loading weight : 3.72kg (8.2lbs)
* All medical devices to be sterilized must be washed and dried completely prior to sterilization in HMTS system.
