HUMAN MEDITEK CO., LTD.

Innovative Technology for Human Benefits

HMA-30

HMA-30 is the most versatile tabletop low temperature hydrogen peroxide sterilizer. Powerful oil-less pump allows for a quick and cost-effective sterilization


Specifications

System Total Size
(W x D x H)
660mm × 720mm x 430mm
Chamber Dimension
245mm × 565mm x 245mm
Chamber Total Volume
(Usable)
34ℓ (30ℓ)
Weight
65kg
Chamber Shape
Rectangular, SUS
Electrical Specification
220V, 50/60Hz, Single Phase
Power Consumption
2400W
Door Lock System
Automatic Open/Close system by an Electric Motor
Sterilizing Agent
Hydrogen Peroxide
35 cycles/bottle
Peroxide Residual
Breakdown
Gas plasma technology breaks down H2O2 to safe by-products of Water and Oxygen.
User Interface
7" Full LCD Touch Screen
Safety System
Overheating control system
Door Interlock
Safe H2O2 injection system
Control System
Digital display of electronic synchronous process execution and cycle progress for the microprocessor




STERILIZATION MODE OVERVIEW

Non-hollow

29 ~ 35 min

 Hollow

39 ~ 45 min

 Container

49 ~ 55 min
  • Surface Sterilization Cycle
  • General metal/non-metal, non-lumened devices
    requiring surface sterilization
  • Flexible/Rigid Device Sterilization Cycle with lumens.
  • Flexible Lumen(Non-metal) : Ø1mm x 1,500mm
  • Hard Lumen(Metal):Ø1mm x 500mm
  • Flexible/Rigid Device with lumens packed with Containers
  • Flexible Lumen(Non-metal) : Ø1mm x 1,500mm
  • Hard Lumen(Metal):Ø1mm x 500mm

FEATURES

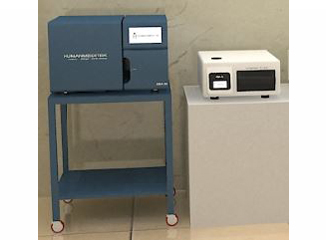

Compact Size with very light weight for narrow space

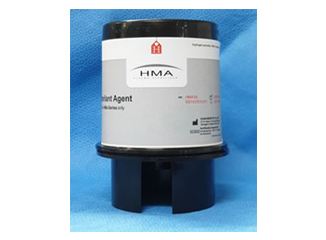

Multicycle User Friendly Bottle

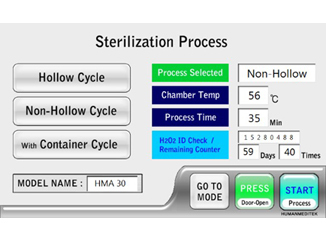

Easy Operating LCD Monitor

Oilless Pump For easy and economical service maintenance

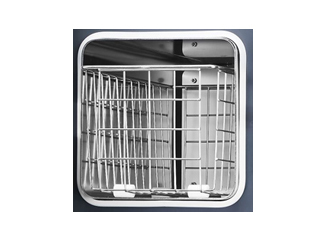

Small but enough size to load medical devices for clinics

Compatibility Guide
