HUMAN MEDITEK CO., LTD.
Innovative Technology for Human Benefits
HMA-7S
HMA-7S combines the reliability of steam-pulse technology with the convenience of cassette autoclave, guaranteed to keep the medical instruments sterile and fully dry..
System Total Size (W x D x H) |
500mm × 710mm x 230mm |
|---|---|
Chamber Dimension |
200mm × 350mm x 100mm |
Chamber Total Volume |
7ℓ |
Weight |
45kg |
Water Reservoir Tank |
6ℓ |
Electrical Specification |
220V, 50/60Hz, Single Phase |
Power Consumption |
2400W |
Door Lock System |
Automatic Open/Close system by an Electric Motor |
User Interface |
4.3" Full LCD Touch Screen |
Control System |
Digital display of electronic synchronous process execution and cycle progress for the microprocessor |
Safety System |
7" Full LCD Touch Screen |
Safety System |
Overheating control system Door Interlock |
Operating Temperature |
134 ~ 137 ℃ (2.0 ~ 2.3 Kgf/cm2) 121 ~ 124 ℃ (1.0 ~ 1.3 Kgf/cm2) |
Maximum Allowable Pressure |
2.7 Kgf/cm2 |
Allowable Noise |
Max 70 dB |
STERILIZATION MODE OVERVIEW
| Sterilization Mode | Sterilization Temp. | Sterilization Time | Drying Time | Description |
|---|---|---|---|---|
| UNWRAPPED | 134 ℃ | 4 min | 5 min | For unwrapped medical devices. |
| POUCHES | 134 ℃ | 6 min | 20 min | For medical devices in combination paper/plastic sterilization pouches or wrapped instruments. |
| LOW TEMP | 121 ℃ | 20 min | 20 min | For rubber or plastics that cannot be sterilized the 134℃. Temp. |
| IMPLANT KIT | 134 ℃ | 6 min | 25 min | For the medical devices inside wrapped container such as Implant Drill Set. |
| USER MODE | 110~135 ℃ | 5~60 min | 0~60 min | The cycle that can be customised by Users. |
FEATURES

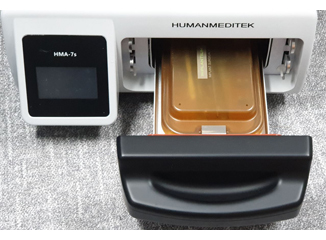

Enough Chamber size for Implant Kit Full Container

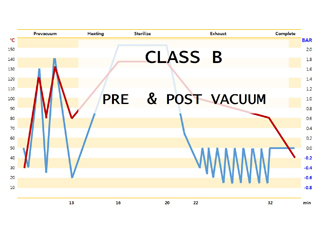

The Highest Performance “Class B” autoclave.
Full Dry after Sterilization cycle

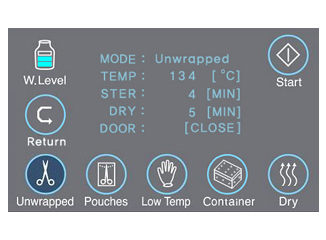

Easy Operating LCD Monitor
