HMA-55

HMA-55 is the perfect sterilization solution to any practices. A full-size chamber can sterilize all the medical devices to meet any sterilization demands.


Specifications

System Total Size
(W x D x H)
650mm × 935mm x 685mm
Chamber Dimension
300mm × 700mm x 300mm
Chamber Total Volume
(Usable)
63ℓ (55ℓ)
Weight
130kg
Chamber Shape
Rectangular, SUS
Electrical Specification
220V, 50/60Hz, Single Phase
Power Consumption
2400W
Door Lock System
Automatic Open/Close system by an Electric Motor
Sterilizing Agent
Hydrogen Peroxide
20 cycles/bottle
Peroxide Residual
Breakdown
Gas plasma technology breaks down H2O2 to safe by-products of Water and Oxygen.
User Interface
7" Full LCD Touch Screen
Safety System
Overheating control system
Door Interlock
Safe H2O2 injection system
Control System
Digital display of electronic synchronous process execution and cycle progress for the microprocessor




STERILIZATION MODE OVERVIEW

Non-hollow

21.5 ~ 29 min

 Hollow

38.5~ 47 min

 Container

49.5 ~ 58 min
  • Surface Sterilization Cycle
  • General metal/non-metal, non-lumened devices
    requiring surface sterilization
  • Flexible/Rigid Device Sterilization Cycle with lumens.
  • Flexible Lumen(Non-metal) : Ø1mm x 1,500mm
  • Hard Lumen(Metal):Ø1mm x 500mm
  • Flexible/Rigid Device with lumens packed with Containers
  • Flexible Lumen(Non-metal) : Ø1mm x 1,500mm
  • Hard Lumen(Metal):Ø1mm x 500mm

FEATURES

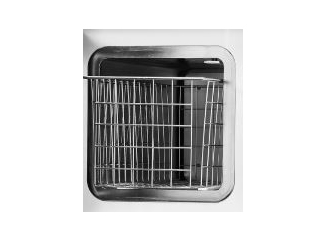

Perfect Chamber size for medium and small size hospitals.

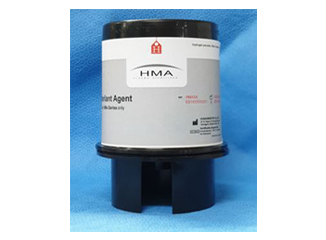

Multicycle User Friendly Bottle

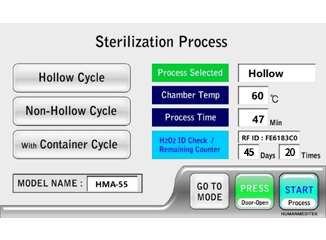

Easy Operating LCD Monitor

Smart Self Diagnostic System : Self Test

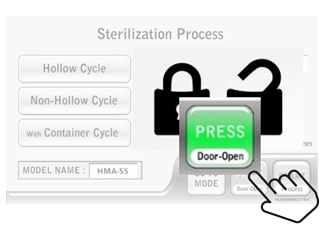

Easy Door Open System

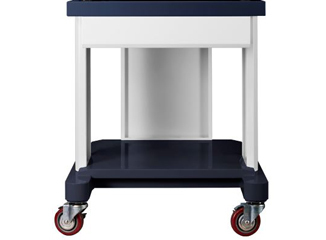

Movable Cart

Compatibility Guide
